AlNiCo / AlNiCo Magnet

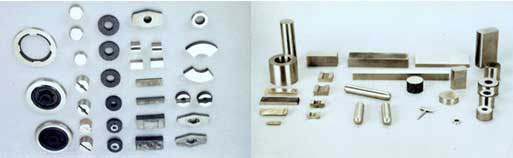

AINiCo magnet is an alloy of aluminum-nickel-cobalt, has excellent temperature stability and corrosion resistance, it can be used in motor, sensor, separator, loudspeaker and holding system. This class of magnet remains a preferred material because of it's excellent temperature stability, high magnetic flux density, and resistance to corrosion. Alnico magnets are manufactured through a casting or sintering process. The casting process allows for the magnet to be manufactured into intricate and complex shapes, which are not possible with other magnetic materials.

Magnetic Properties of Sintered AlNiCo Magnet
Grade Remanence Coercivity Force Intrinsic Coercive Force Max. Energy Product max. continuous temperature Density Remarks
Br Hcb Hcj ( BH ) max
mT kA/m kA/m kJ/m3 g/cm2
SAINiCo4/1 870-890 9-11 10-12 3.2-4.8 750 6.8 Isotropy
SAINiCo8/5 530-620 45-50 47-52 8.5-9.5 750 6.8
SAINiCo10/5 630-700 48-56 50-58 9.5-11 780 6.8
SAINiCo12/5 700-750 50-56 53-58 11-13 800 7
SAINiCo14/5 730-800 47-50 50-53 13-15 790 7.1
SAINiCo14/6 620-810 56-64 58-66 14-16 790 7.1
SAINiCo14/8 550-610 75-88 80-92 14-16 850 7.1
SAINiCo18/10 570-620 92-100 99-107 16-19 860 7.2
SAINiCo35/5 1100-1200 48-52 50-54 35-39 850 7.2 Anisotropy
SAINiCo29/6 970-1090 58-64 60-66 29-33 860 7.2
SAINiCo32/10 770-870 90-104 94-109 33-38 860 7.2
SAINiCo33/11 700-800 107-115 111-119 33-38 860 7.2
SAINiCo39/12 830-900 115-123 119-127 39-43 860 7.25
SAINiCo44/12 900-950 119-127 124-132 44-48 860 7.25
SAINiCo37/15 700-800 143-151 150-158 37-41 870 7.1
Magnetic Properties of Cast AlNiCo Magnet
Grade Remanence
Br
Coercivity Force
Hcb
Max. Energy Product( BH )max max.continuous temperature US standard IEC standard

mT kGs kA/m Oe kJ/m3 MGOe
LN10 650 6500 42 530 10 1.2 810 Alnico 3 Alnico 9/3
LNG11 720 7200 37 480 11.2 1.4 810 Alnico 1 Alnico 8/4
LNG13 700 7000 50 620 13 1.6 810 Alnico 2 Alnico 12/6
LNGT18 580 5800 90 1130 18 2.26 860 [I.Alnico8] Alnico 17/9
LNG16 800 8000 53 660 16 2 850 [Alnico 4] /
LNG34 1180 11800 44 550 35 4.3 860 [Alnico 5C] /
LNG37 1180 11800 48 600 37 4.65 860 [Alnico 5C] Alnico 37/5
LNG40 1220 12200 48 600 40 5 860 Alnico 5 /
LNG44 1220 12200 52 650 44 5.5 860 Alnico 5 Alnico 44/5
LNG52 1250 12500 55 690 52 6.5 860 Alnico 5 DG Alnico 52/6
LNG60 1300 13000 56 700 60 7.5 860 Alnico 5~7 /
LNGT28 1050 10500 56 700 28 3.5 860 Alnico 6 Alnico 26/6
LNGT32 800 8000 104 1300 34 4.25 860 Alnico 8 Alnico 38/11
LNGT38 820 8200 110 1380 38 4.75 860 Alnico 8 Alnico 38/11
LNGT44 880 8800 120 1500 44 5.5 860 Alnico 8 /
LNGT60 900 9000 110 1380 60 7.5 860 Alnico 8 Alnico 60/11
LNGT72 1050 10500 112 1410 72 9< 860 Alnico 9 /
LNGT36J 700 7000 140 1750 36 4.5 860 Alnico 8 HC Alnico 36/15
