| Rubber Magnet |
|
 |
|
| Rubber magnet, Flexible magnet, Magnetic sheet, Magnetic vinyl, Fridge magnets |
Rubber magnets have wide applications, which result in many different names such as rubber magnets, flexible rubber magnets, plastic magnets, fridge, refrigerator magnets, flexible magnets, magnetic sheets, magnetic strip, decorative magnets, educational magnets, souvenir magnets, giftware magnets, novelty magnets. |

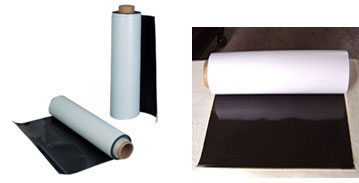

Flexible Magnet is a kind of soft and elastic magnet. It is compound of plastics or rubbers (NBB or CPE) and ferrite powders. It is easy to design in various shapes such as slicing, drilling and rolling. Easily processing for sizes and shapes.
Electric Motor Strip is mainly applied precise micro-motors for such equipments as recorder, VCD, walkman, computer and etc. Flexible Ferrite Magnet used in door-sealing of refrigerator and fountain, magnetic palette, toy, teaching, relay, switch and etc.
Rubber magnet (flexible magnet, plastic magnet or magnetic sheet) can stick with PVC, double adhesive and wipe UV oil.
Rubber magnet (flexible magnet, plastic magnet or magnetic sheet) can be either isotropic or anisotropic.
The isotropic flexible magnets are widely used for daily necessary industry, toy, family education, printing and decoration industry.
The anisotropic flexible magnet has higher magnetic properties than isotropic flexible magnet. It is mainly used for dc-motors or strong holding applications.
Rubber magnet (flexible magnet, plastic magnet or magnetic sheet) offers the product designer a uniquely choice of combination of flexibility and machinability.
|
|
Features/Magnetic Properties of Plastic & Rubber Magnetic Materials |
| Material |
Br
MT(G) |
HCB
KA/m (0e) |
HCJ
KA/m (0e) |
(BH)max
KJ/m3 (MGOe) |
| G5T |
140-155
(1400-1550) |
90-120
(1125-1500) |
130
(1625) |
4.0-5.6
(0.5-0.7) |
| G8 |
160-185
(1600-1850) |
120-140
(1500-1750) |
150
(1875) |
5.6-7.0
(0.7-0.89) |
| G10 |
200-210
(2000-2100) |
145
(1812) |
160
(2000) |
8.0-9.6
(1.0-1.2) |
| G11 |
230-245
(2300-2450) |
160
(2000) |
175
(2188) |
10.0-11.0
(1.25-1.39) |
| G13 |
≥250
(2500) |
160
(2000) |
182
(2275) |
11.2-12.6
(1.40-1.51) |
| G15 |
260
(2600) |
172
(2150) |
196
(2450) |
12-12.8
(1.5-1.6) |
| G11H |
230-240
(2300-2400) |
170
(2125) |
188
(2500) |
10.0-11.0
(1.25-1.34) |
|
|

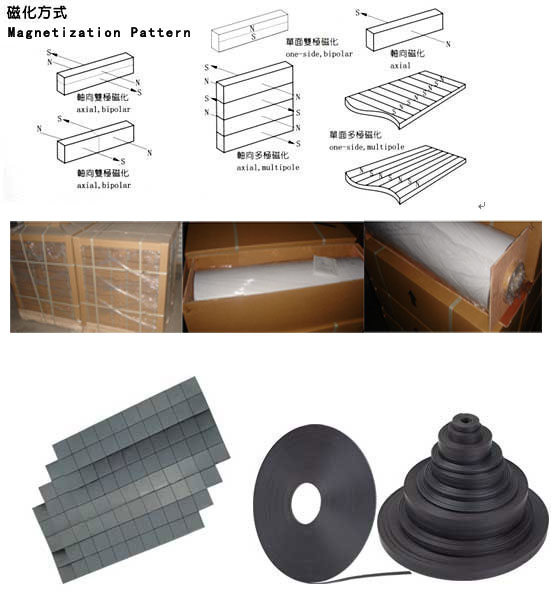

Magnetization Pattern
 |
 |
 |

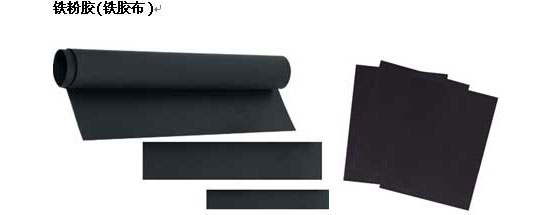

Ferrous power bond sheet (ferrous cloth)
As an adhesive base stencil to the magnetic substance, it has the sound safety and flexibility. It can be curled and processed. The goods can be supplied in the coiled form. The surface can be coated with film or be printed. It can be used for the wave absorbing materials and magnetic circuit shield. It is widely applicable for the transformer, office supplies, exhibition board, toy, stationery, magnetic dart etc.
Plastic & rubber magnet, proved superior to sintered magnet on aspects of forming ability, size precision, consistence and flexibility, are compound of magnetic powder and plastic or rubber material through special technique. Our company has been engaged in development and improvement of flexible permanent magnet. Its products, isotropic & anisotropic, carefully tailored by customers' needs, cover sheeting and roll of all sizes, magnetic strips of various cross sections, magnet used for various surface treatments (film covering, paint spraying). Plastic or rubber magnet is widely used on micro or special motors, stationery, household appliances, gifts, children’s toys and advertising. |

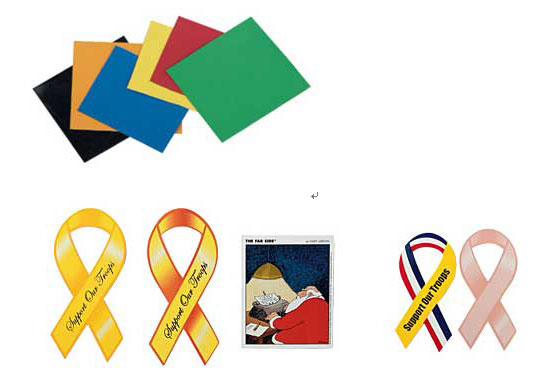

Fridge magnets (Refrigerator magnets)
Fridge magnets (Refrigerator magnets) is widely used for advertising, children cartoon toy, gift promotion. The magnetic sheet can be covered with chrome paper or white PVC film, then printed with the fine and exquisite patterns. It can be die-cut into various shapes of the fine and exquisite refrigerator magnet.
|
|
